- Place of Origin: Guangdong, China (Mainland)
- Brand Name: GTW
- Model Number: ZJ860
model: ZJ860

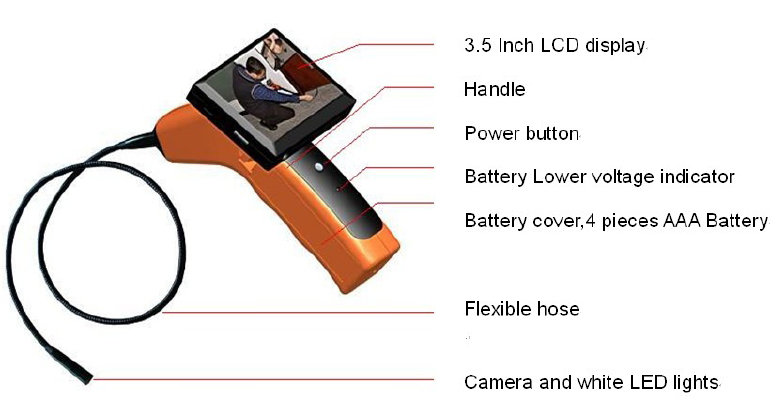

Features:
*4 Channels Wireless Receiving Function
*MP3 Player
*Take photos and record videos
*Can play back pictures, recorded video
*Can be used as U disk
*Support 32GB TF Card
*3.45 inch colour LCD display
*Picture resolution:JPEG 640*480
*Video resolution: AVI 640*480
*Image format:JPEG
*Video format:MJPEG
*Built-in Lithium Battery
*4 pieces AAA battery
*300k High definition CMOS sensor
*4 white LED lights
*The clearness of the LED Fill Light can be adjusted
Electrical parameters: LCD and Video Parameters: |
Screen size and resolution:320x240RGB :TFT 3.45inch |
AV Output system:Standard PAL / NTSC output |
LCD System:PAL/NTSC switch automatically |
Video format:640x480/AVI 25- 30 frames / sec |
Video Compression Format:MJPEG-AVI Max 30pfs |
Support file format:MPJEG-4/AVI |
Video output level:0.7-1.2vp-p |
Speaker Output:800MW( Max volume ) |
Audio format:MP3 |
Picture:File Format:JPG/JPEG/ |
RF part: |
Receive frequency:ISM2400—2483MHZ |
Channel interval:18MHZ |
Intermediate frequency:480MHZ |
Modulation mode:FM |
CH number:4 Channels CH1;2414MHZ,CH2:2432MHZ,CH3:2450MHZ,CH4:2468MHZ |
Rx sensitivity:-70dBM |
Storage: |
Memory Card:Internal flash range from 128MB to 4GB,according to customers’s requirement |
Storage way:TF Card and NANAD Flash( Internal memory) |
TF Card:Support 128M to 32GB(Max) |
Operation system: |
IBM-PC:Windows 98SE,ME,2000,XP |
USB:USB 2.0 |
Operation system:Chinese/English |
Work Voltage: |
DC5V:DV 5V for USB Port and built-in Li battery |
Li battery capacity:700mah 40-70Minutes continuously with full battery |
Work current:580MA MAX camera basic parameters : |
Focus:40-60MM |
View angle:40—50 degree |
Definition:380 TV lines |
Pixel:0.3 Mega |
Sensor size:1/6 Inch |
Transmit frequency:ISM2400—2483MHZ |
Modulation mode:FM |
Channel:4Channels CH1:2414MHZ,CH2:2432MHZ,CH3:2450MHZ,CH4:2468MHZ |
Channel interval:18MHZ |
Transmission power:18dB |
Work voltage:DC 6V 4pcs AAA Dry battery |
Work current:180MA MAX |
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: GTW
- Model Number: ZJ860
